• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7801

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UF42 UCH42 UBF15 UAF42 UM11 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 120; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

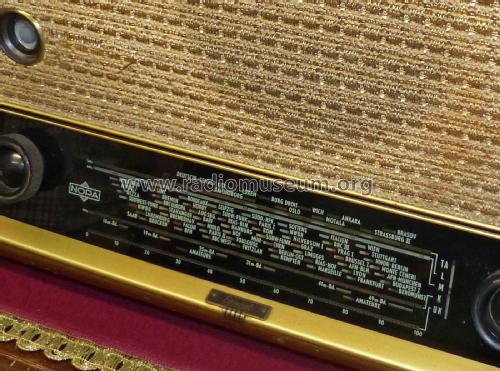

• Model: Egmont GW855 [UF42] - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 379 x 250 mm / 22 x 14.9 x 9.8 inch

• Notes

• FM-Demodulator (Ratiodetektor) mit Germanium-Dioden.
  Siehe auch Egmont GW855 mit UF80 in FM-Mischstufe.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 340.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Schematic (Funkschau-Schaltungssammlung)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 633 models, 556 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nora, Aron, Heliowatt; Berlin
