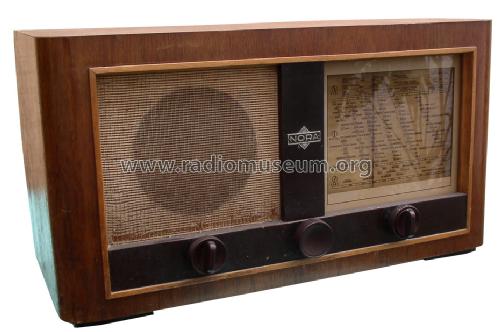

FW 69-H
Nora, Aron, Heliowatt; Berlin
- Country
- Germany
- Manufacturer / Brand
- Nora, Aron, Heliowatt; Berlin
- Year
- 1940 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 112709
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 or 473 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: FW 69-H - Nora, Aron, Heliowatt; Berlin
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 310 x 260 mm / 22.4 x 12.2 x 10.2 inch
- Notes
- Variable Bandbreite durch Ziehen am Abstimmknopf.
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Leo Brtna. See "Data change" for further contributors.
