• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7826

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY21

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 115/230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

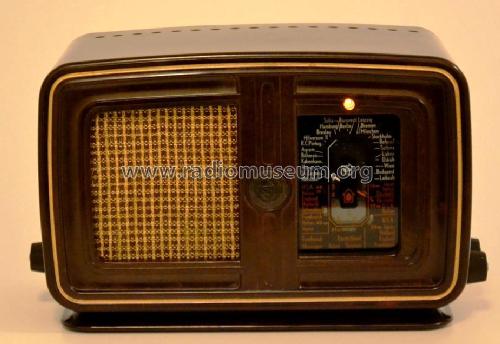

• Model: GW410K - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 165 x 130 mm / 10.6 x 6.5 x 5.1 inch

• Notes

• Ch= Philips 204U. Sogenanntes Verlagerungsgerät.

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Mentioned in
• Funkgeschichte der GFGF (Nr. 234, 235, 236 (2017))
