- Country
- Germany
- Manufacturer / Brand
- Nora, Aron, Heliowatt; Berlin
- Year
- 1929/1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8134
Preisliste 1929/30 Lehner&Küchenmeister

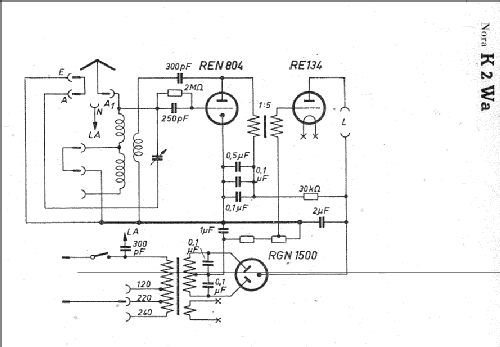

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 120; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: K2Wa - Nora, Aron, Heliowatt; Berlin
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 360 x 210 x 170 mm / 14.2 x 8.3 x 6.7 inch
- Notes
- Trafokopplung, Blechfront
- Price in first year of sale
- 115.00 RM +
- Source of data
- Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Der Radio-Händler / Der Rundfunk-Händler (ab Jan. 1939) (2920)
- Literature/Schematics (1)
- Lange / Nowisch, "Empfängerschaltungen der Radioindustrie"
- Picture reference
- Eine Abbildung findet sich im Doppelband "Radios von gestern"
