- Country
- Germany
- Manufacturer / Brand
- Nora, Aron, Heliowatt; Berlin
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 282865
Erlaubnis von Ebay tube-20
Erlaubnis von Ebay tube-20
Erlaubnis von Ebay tube-20
Erlaubnis von Ebay tube-20
Erlaubnis von Ebay tube-20
- Number of Tubes
- 3
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: M1W - Nora, Aron, Heliowatt; Berlin
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Wahrscheinlich Exportgerät, bei zwei dokumentierten Geräten VDE-Zeichen ausgestanzt, Skala mit Moskau.

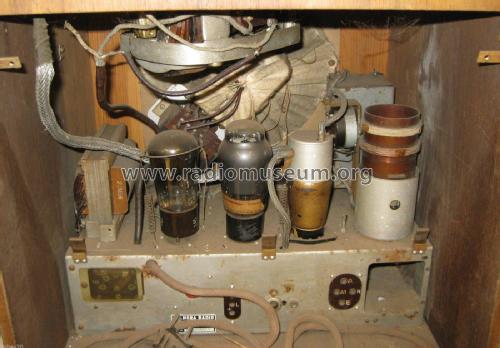

Chassis wohl identisch mit W204L, mit Plattenspieler.
- Author
- Model page created by Joachim Glüder. See "Data change" for further contributors.
