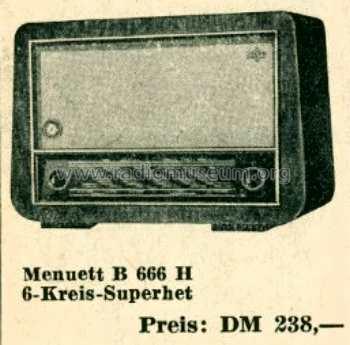

Menuett B666H
Nora, Aron, Heliowatt; Berlin
- Country
- Germany
- Manufacturer / Brand
- Nora, Aron, Heliowatt; Berlin
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 7793
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 110 & 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Menuett B666H - Nora, Aron, Heliowatt; Berlin
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 360 x 210 mm / 20.9 x 14.2 x 8.3 inch
- Notes
- Das Gerät wird auf Wunsch auch mit 2× KW geliefert.
- Net weight (2.2 lb = 1 kg)
- 8.7 kg / 19 lb 2.6 oz (19.163 lb)
- Price in first year of sale
- 238.00 DM
- Source of data
- Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Funkschau (5114)
- Picture reference
- Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
