• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7905

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

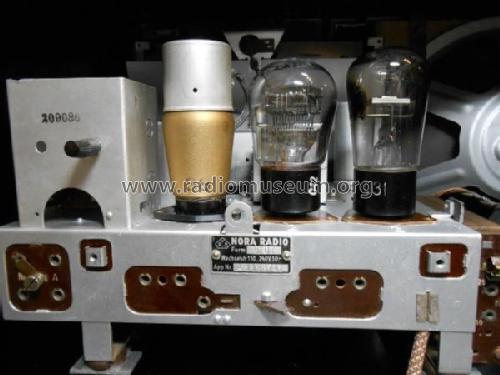

• Valves / Tubes
• AF7 RES164 RGN354

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).

• Material
• Bakelite case

• from Radiomuseum.org

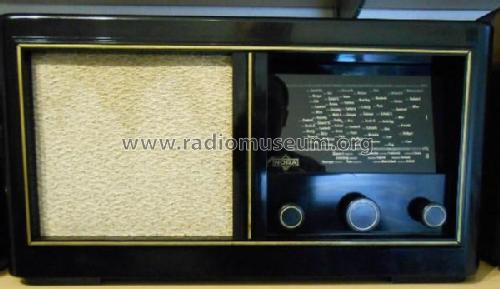

• Model: Musikus W07 - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 280 x 270 mm / 20.5 x 11 x 10.6 inch

• Notes

• Farbe schwarz, 73 Sendernamen.

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• Price in first year of sale
• 130.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• -- Schematic (OTO-Schaltungen)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
