Netzanode NG

• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1929–1933

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 8091

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Power: B-Battery Eliminator

• Power type and voltage
• Direct Current supply (DC) / 110/220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Netzanode NG - Nora, Aron, Heliowatt; Berlin

• Notes
• Für Gleichstrom, bis 40mA, U_max: 100/200 V.

• Price in first year of sale
• 35.00 RM

• Source of data

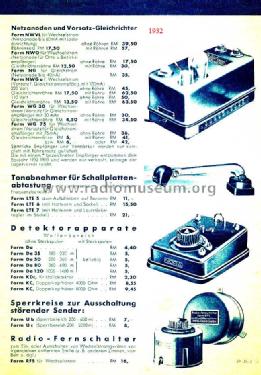

• Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• Molnár János: Anódpótlók, Budapest, 1929.
