• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1928/1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3787

• Number of Tubes
• 4

• Valves / Tubes
• RE074ns RE034s RE034s RE114s

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s); Neutrodyne

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

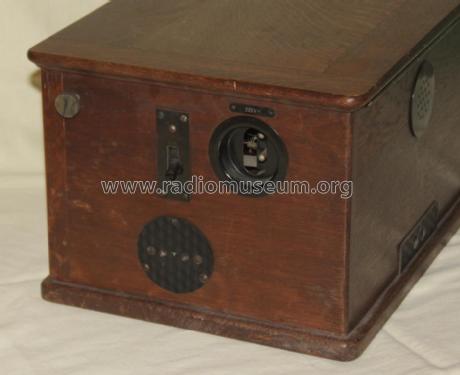

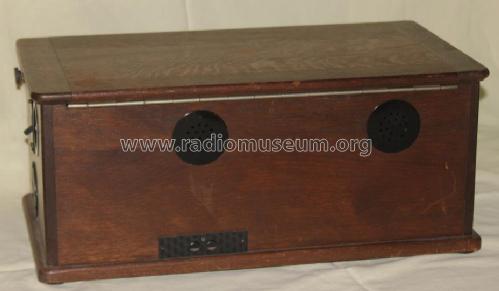

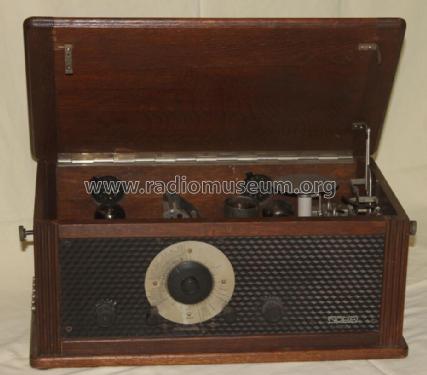

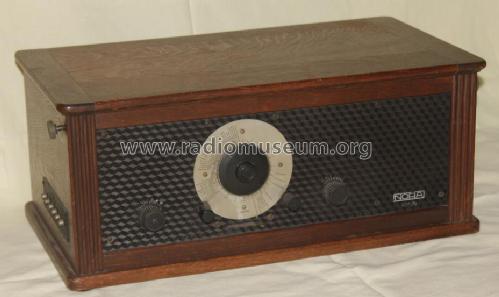

• Model: Neutrodyn K4G [220V] - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 500 x 250 x 200 mm / 19.7 x 9.8 x 7.9 inch

• Notes
• Neutrodyn, Doppeldrehko+Korr. [306, 560]

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)

• Price in first year of sale
• 310.00 RM +

• Source of data
• Kat. Radio-WEB 1929 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Der Radio-Händler / Der Rundfunk-Händler (ab Jan. 1939) (2920)
