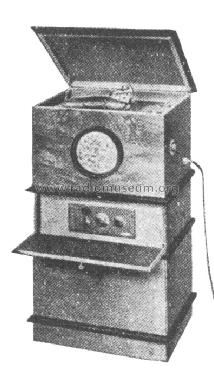

Noracord A Gleichstrom
Nora, Aron, Heliowatt; Berlin
- Country
- Germany
- Manufacturer / Brand
- Nora, Aron, Heliowatt; Berlin
- Year
- 1929–1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8087
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Direct Current supply (DC) / 220-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Noracord A [Gleichstrom] - Nora, Aron, Heliowatt; Berlin
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 999 x 650 x 510 mm / 39.3 x 25.6 x 20.1 inch
- Notes
-
Musikschrank, el.Pl.Sp. [501, 569]
In einigen Katalogen wird irrtümlich eine Endröhre RE604s (für Serienheizung) geführt. Eine RE604s gibt es nicht, richtig ist RE604.
Preis ohne Röhren, zusätzlich Röhrensatz Preis: 38,- RM
- Price in first year of sale
- 845.00 RM +
- Source of data
- Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Katalog Radio-Zentrale Prohaska 1931/32
