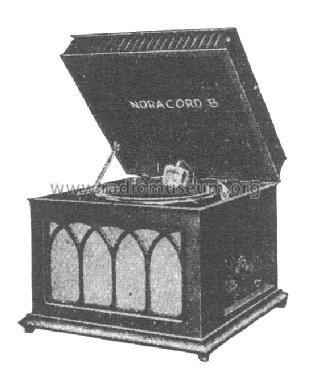

Noracord B Wechselstrom
Nora, Aron, Heliowatt; Berlin
- Country
- Germany
- Manufacturer / Brand
- Nora, Aron, Heliowatt; Berlin
- Year
- 1929–1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8083
Kahle & Cless, Leipzig, Katalog 1931
Prohaska Flugblatt ohne Datumsangabe
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 120-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Noracord B [Wechselstrom] - Nora, Aron, Heliowatt; Berlin
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 400 x 470 x 470 mm / 15.7 x 18.5 x 18.5 inch
- Notes
-
Phono-Tischgerät [569]
Im Katalog Prohaska 1930/31 wird für dieses Modell eine RGN2004M geführt (metallisierte RGN2004), die es aber mit der Bezeichnung nicht gab.
Preis ohne Röhren, zusätzlich Röhrensatz Preis: 72,50 RM
- Price in first year of sale
- 480.00 RM +
- Source of data
- Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Funkgeschichte der GFGF (8757)
- Literature/Schematics (1)
- Kahle & Cless, Leipzig, Katalog 1931
