• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7885

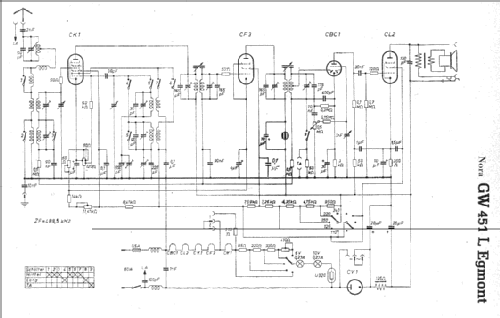

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CK1 CF3 CBC1 CL2 optional CY1 U920

• Main principle
• Superheterodyne (common); ZF/IF 478 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Record Player (perh.Changer); Visual Tuning Indicator pre Eye

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

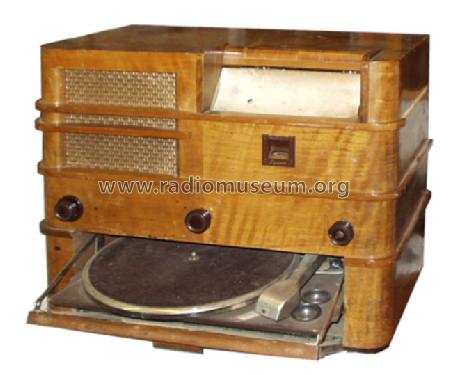

• Model: Noracord "Egmont" GW451L - Nora, Aron, Heliowatt; Berlin

• Dimensions (WHD)
• 545 x 430 x 280 mm / 21.5 x 16.9 x 11 inch

• Notes

• Feldst.Anz.«Schattenvisier»

  Abstimmung mit "Optilux"-System.

• Price in first year of sale
• 430.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• -- Original prospect or advert
