• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7949

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1294 RENS1204 RENS1374d RGN1064

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

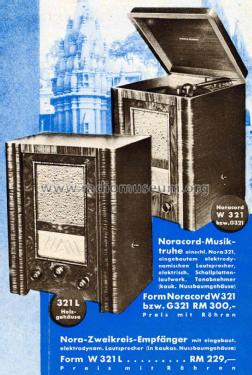

• Model: Noracord W321 - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Ch=321

• Price in first year of sale
• 253.00 RM +

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkgeschichte der GFGF (8757)

• Literature/Schematics (1)
• -- Schematic (OTO-Schaltungen)
