Noracord W600
Nora, Aron, Heliowatt; Berlin
- Country
- Germany
- Manufacturer / Brand
- Nora, Aron, Heliowatt; Berlin
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 7929

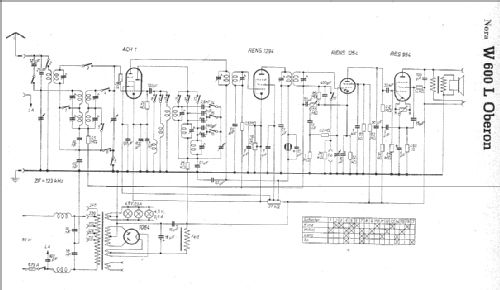

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 123 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details

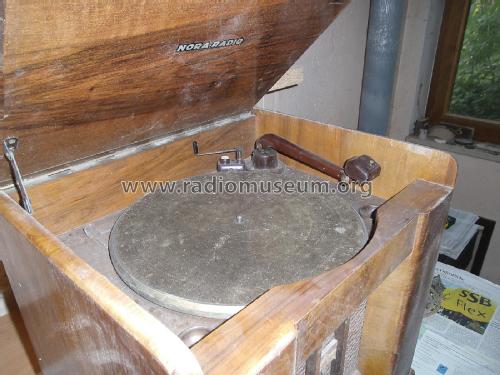

- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Noracord W600 - Nora, Aron, Heliowatt; Berlin
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 440 x 485 x 360 mm / 17.3 x 19.1 x 14.2 inch
- Notes
- Feldst.Anz.(Schattenzeiger)
- Price in first year of sale
- 416.00 RM
- Source of data
- Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
