• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1954–1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19686

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM85 EL84 EZ80

• Main principle
• ZF/IF 473/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

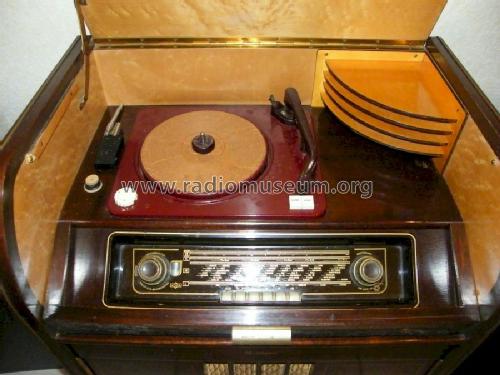

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5.3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Noraton W1001 [Wechsler] - Nora, Aron, Heliowatt; Berlin

• Shape

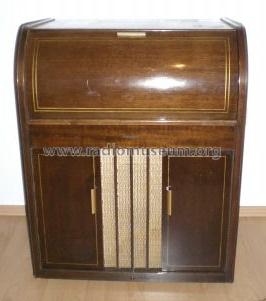

• Console with Push Buttons.

• Dimensions (WHD)
• 650 x 820 x 450 mm / 25.6 x 32.3 x 17.7 inch

• Notes

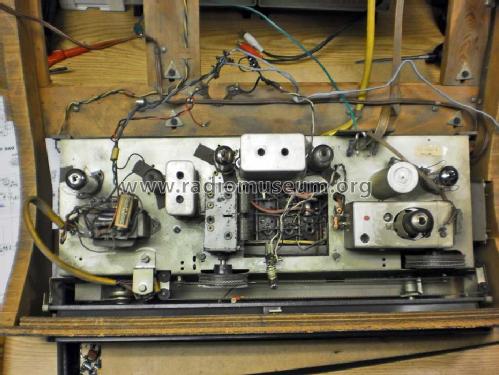

• Rundfunk-Chassis = Tarantella W949;
  Phono-Chassis = Elac PW6.

• Net weight (2.2 lb = 1 kg)
• 39 kg / 85 lb 14.4 oz (85.903 lb)

• Price in first year of sale
• 658.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

• Literature/Schematics (1)
• -- Original-techn. papers.
