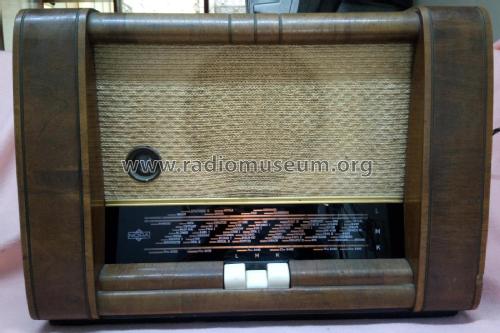

Noravox W755 ohne EM5
Nora, Aron, Heliowatt; Berlin
- Country
- Germany
- Manufacturer / Brand
- Nora, Aron, Heliowatt; Berlin
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 7799
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Noravox W755 [ohne EM5] - Nora, Aron, Heliowatt; Berlin
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 470 x 340 x 225 mm / 18.5 x 13.4 x 8.9 inch
- Notes
- Export; auch LMK.
- Net weight (2.2 lb = 1 kg)
- 8.8 kg / 19 lb 6.1 oz (19.383 lb)
- Source of data
- Radiokatalog Band 1, Ernst Erb
