Reise-Super K69

• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1938–1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7865

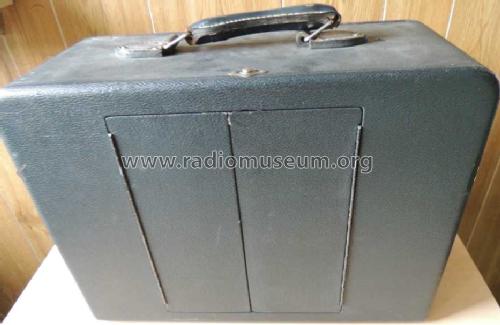

• Picture

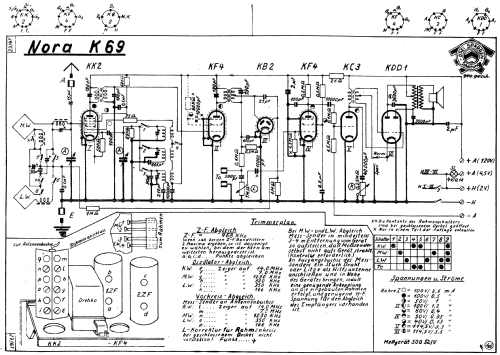

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• KK2 KF4 KB2 KF4 KC3 KDD1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 120+2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Reise-Super K69 - Nora, Aron, Heliowatt; Berlin

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 450 x 340 x 190 mm / 17.7 x 13.4 x 7.5 inch

• Notes
• [63-77]

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 250.00 RM

• Source of data
• Katalog Eltax, Berlin, 1939/40 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Radios von gestern, 1. Auflage

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
