• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7918

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1284 AB1 RES964 RGN1064

• Main principle
• TRF with diode detector; 1 Special; 2 AF stage(s); Reflex

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

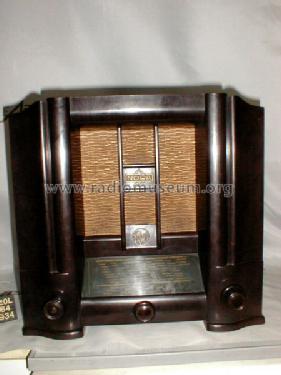

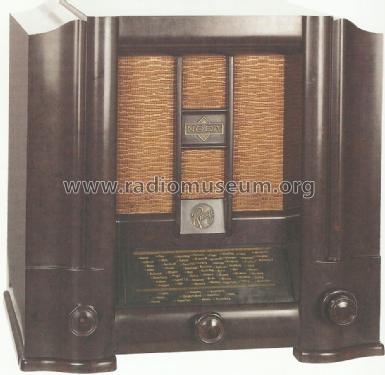

• Model: Rienzi W220L [Bakelitgehäuse] - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 385 x 400 x 310 mm / 15.2 x 15.7 x 12.2 inch

• Notes

• 1284=Reflex HF+NF

  MW 200-600m

  LW 850-2000m

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 198.00 RM !

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Handbuch der Funktechnik und ihrer Grenzgebiete Bände 1 bis 12 (Ficha tecnica)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
