W200L Bakelitgehäuse

• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1933–1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7957

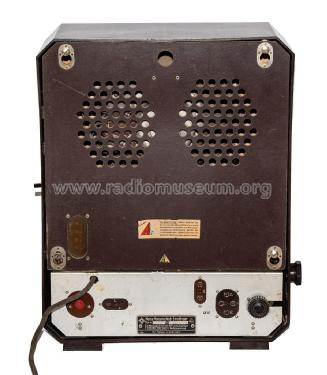

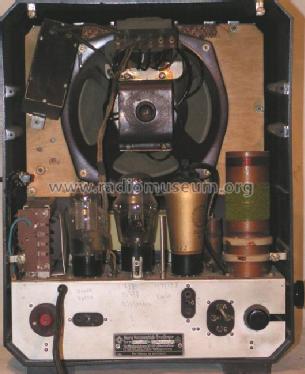

• Picture

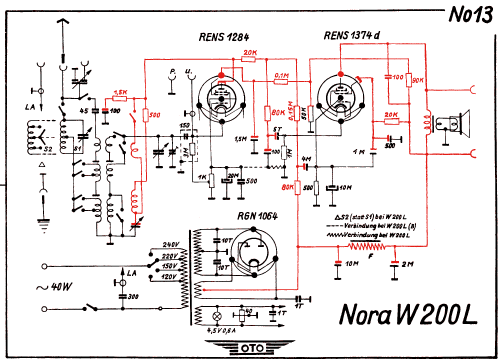

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1284 RENS1374d RGN1064

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: W200L [Bakelitgehäuse] - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 325 x 405 x 160 mm / 12.8 x 15.9 x 6.3 inch

• Notes
• Ecken schräg

• Price in first year of sale
• 150.00 RM !

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference

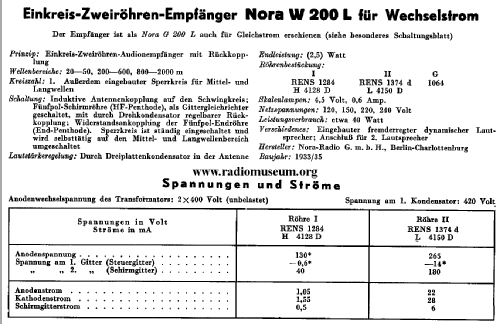

• Lange + FS-Bestückungstabellen

• Mentioned in
• Handbuch der Funktechnik und ihrer Grenzgebiete Bände 1 bis 12

• Literature/Schematics (1)
• -- Schematic (OTO-Schaltungen)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
