• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1932–1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8001

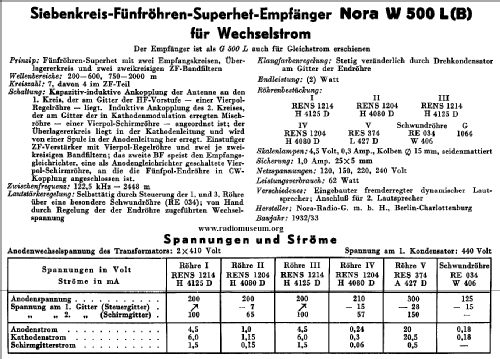

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• RENS1214 RENS1204 RENS1214 RENS1204 RE034 RES374 RGN1064

• Main principle
• Superhet with RF-stage; ZF/IF 122,5 kHz; Anode bend detection

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Form W500 [Holzgehäuse] - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 453 x 285 x 247 mm / 17.8 x 11.2 x 9.7 inch

• Notes

• Preis ohne Röhren, zusätzlich Röhrensatz, Preis: 95,90 RM

• Net weight (2.2 lb = 1 kg)
• 13.1 kg / 28 lb 13.7 oz (28.855 lb)

• Price in first year of sale
• 220.00 RM +

• Source of data
• Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
