Form W500L

• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1932–1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8003

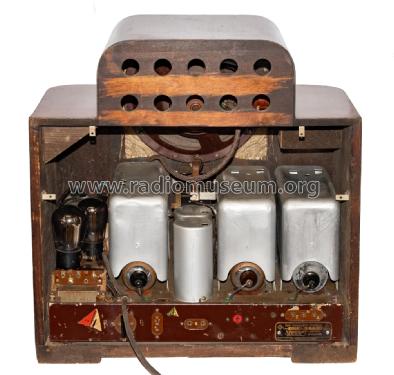

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• RENS1214 RENS1204 RENS1214 RENS1204 RE034 RES374 RGN1064

• Main principle
• Superhet with RF-stage; ZF/IF 122,5 kHz; Anode bend detection

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Form W500L - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 460 x 480 x 320 mm / 18.1 x 18.9 x 12.6 inch

• Notes

• Kap,2 seitl.Anbauten

  Preis ohne Röhren, zusätzlich Röhrensatz, Preis: 95,90 RM

• Price in first year of sale
• 260.00 RM +

• Source of data
• Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Funkgeschichte der GFGF (9283)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 633 models, 556 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nora, Aron, Heliowatt; Berlin

Forum contributions about this model: Nora, Aron,: Form W500L

Threads: 1 | Posts: 4
