Improved Super 10 TRF

• Country
• United States of America (USA)

• Manufacturer / Brand
• Leutz, C.R., Inc.(Golden-Leutz, Norden-Hauck); Altoona (PA) later New York

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 49728

• • alternative name: Experimenters Information Service || Norden-Hauck

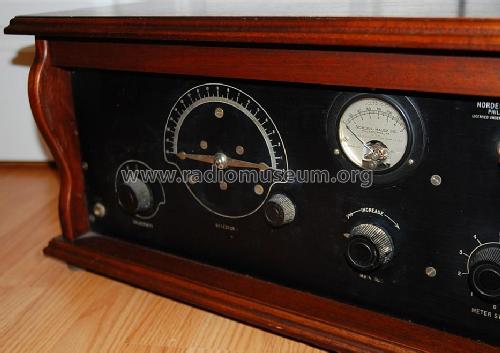

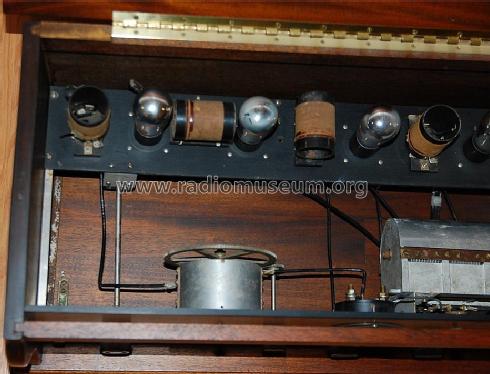

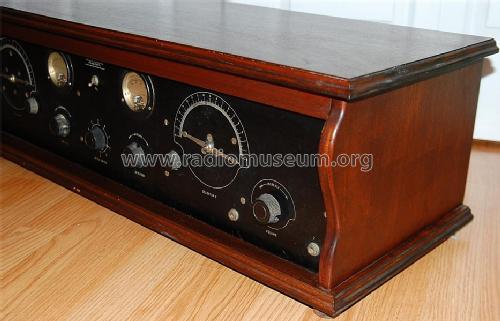

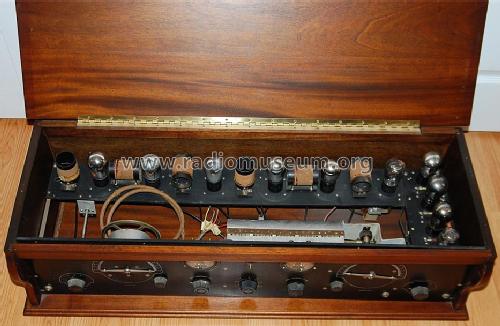

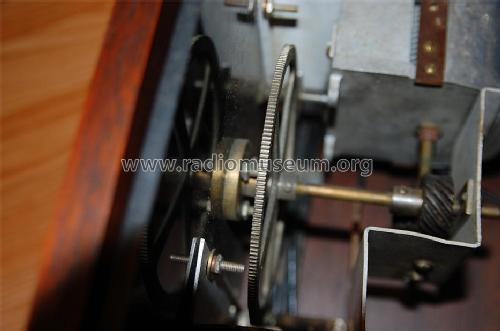

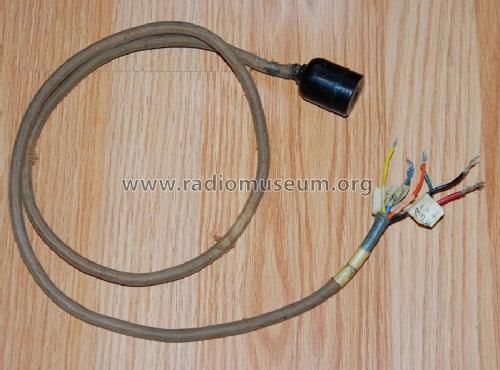

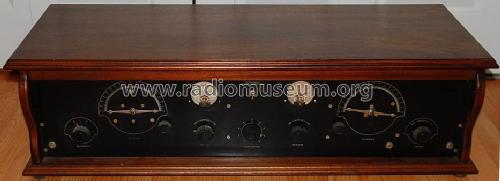

• Picture

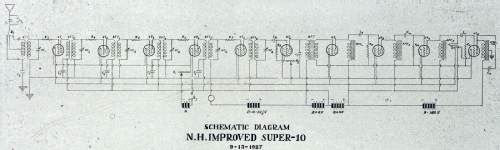

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Power type and voltage
• Storage and/or dry batteries

• Material
• Wooden case

• from Radiomuseum.org
• Model: Improved Super 10 [TRF] - Leutz, C.R., Inc.Golden-Leutz,

• Shape
• Tablemodel, with any shape - general.

• Notes
• Two dials (primary tuning control knobs)

• Price in first year of sale
• 291.40 USD

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Radio Manufacturers of the 1920's, Vol. 2 (p.127)
