186-WU

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7755

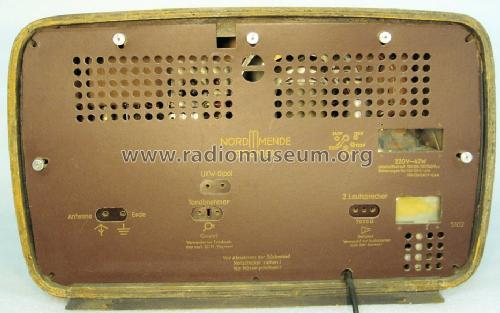

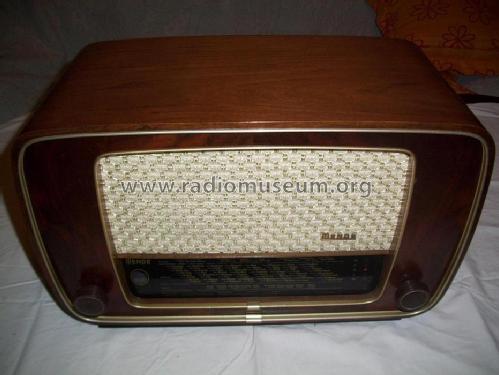

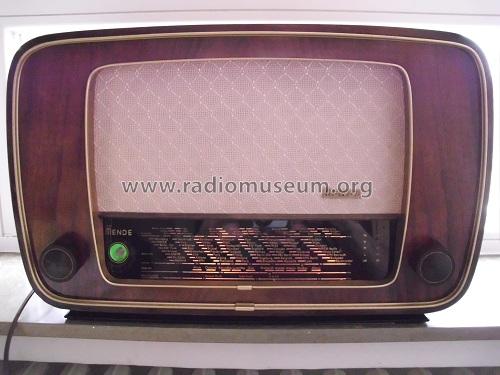

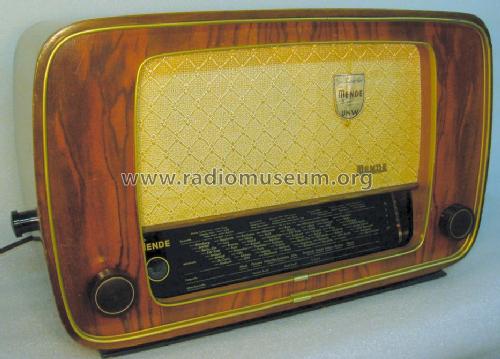

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBF80 EL41 EM34

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 186-WU - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 515 x 325 x 230 mm / 20.3 x 12.8 x 9.1 inch

• Notes
• Bandbreite umschaltbar; UKW 84···102 MHz. Zwei Ge-Dioden zur UKW Demodulation.

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)

• Price in first year of sale
• 328.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Schematic

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
