• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7715

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF42 ECH42 EF41 EBF80 EM34 EL41

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz; Reflex

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 187-WU - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 360 x 240 mm / 22 x 14.2 x 9.4 inch

• Notes

• Variable Bandbreite.
  Die erste ZF-Stufe (EF41) arbeitet in Reflexschaltung als erste NF-Stufe.
  Zwei Ge-Dioden zur UKW Demodulation (Diskriminator).
  Geregelte FM-Vorstufe über separate Ge-Diode.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 376.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• -- Schematic

• Literature/Schematics (1)

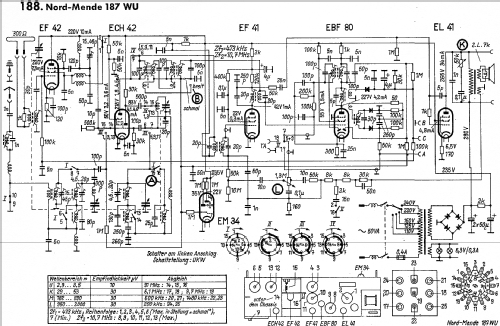

• Funkschau (Schaltungssammlung Nr. 188)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
