• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7780

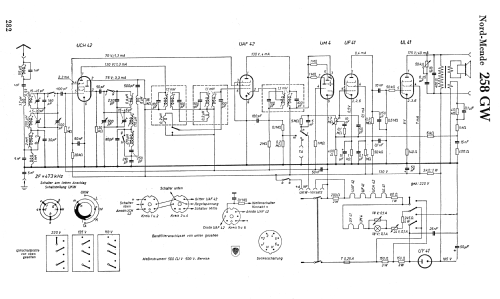

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UAF42 UF41 UL41 UM4 UY41

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, several Short Wave.

• Power type and voltage
• AC/DC-set / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

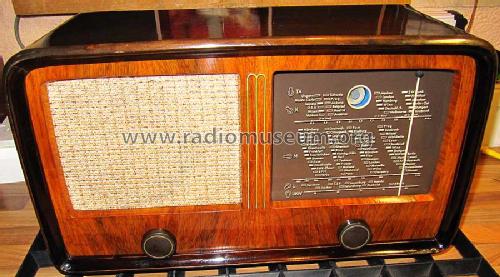

• Model: 8-Kreis-Super 258GW - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 510 x 295 x 210 mm / 20.1 x 11.6 x 8.3 inch

• Notes
• variable Bandbreite.
  Vorbereitet für den Einbau des UKW Pendelers UKW E1.

• Net weight (2.2 lb = 1 kg)
• 8.1 kg / 17 lb 13.5 oz (17.841 lb)

• Price in first year of sale
• 268.00 DM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• Lange / Nowisch, "Empfängerschaltungen der Radioindustrie"

• Picture reference

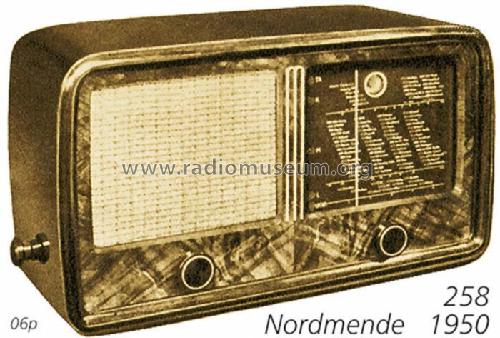

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
