500-10 Ch= 5214 bis Nr. 14500

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7716

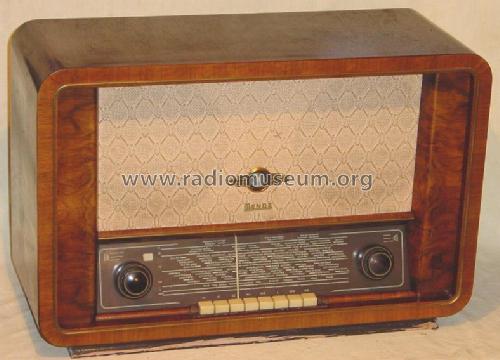

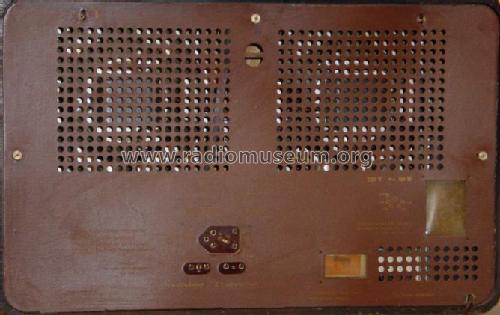

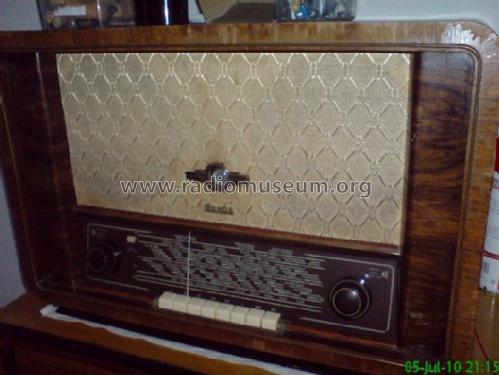

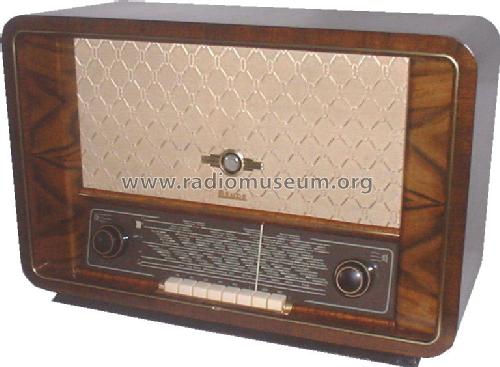

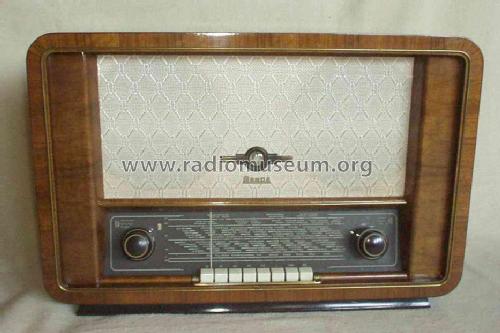

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

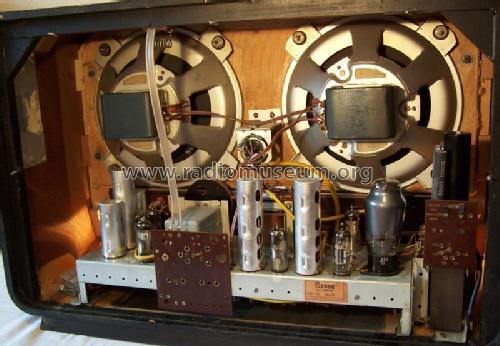

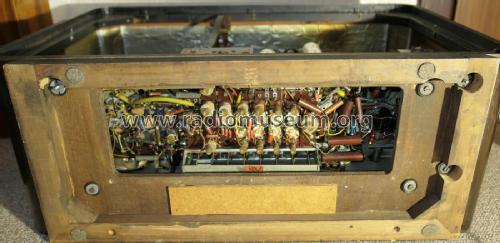

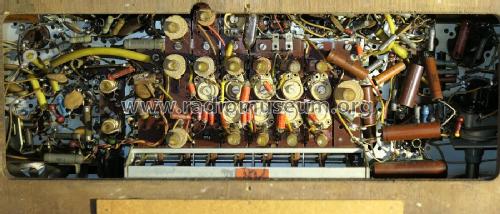

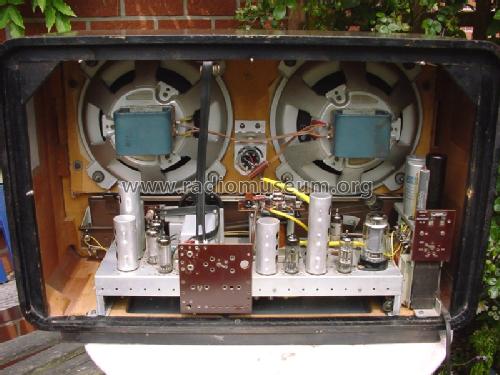

• Number of Tubes
• 8

• Valves / Tubes
• EF85 ECH81 ECH81 EF85 EM34 EABC80 EF40 EL12/375

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 25 cm = 9.8 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 500-10 Ch= 5214 [bis Nr. 14500] - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 420 x 255 mm / 25.2 x 16.5 x 10 inch

• Notes

• Bandbreite schaltbar. 2 Mittelwellenbereiche.
  Der Grosshandelskatalog führt den UKW-Empfangsbereich 82-102 MHz.

  2 Ausführungen:
  Nordmende 500-10 Chassis 5214 bis Nr. 14500
  Nordmende 500-10 Chassis 5214A ab Nr. 14501 mit geändertem UKW-Teil.

• Net weight (2.2 lb = 1 kg)
• 17.1 kg / 37 lb 10.6 oz (37.665 lb)

• Price in first year of sale
• 538.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
