• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1977 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93350

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 46

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (unknown quality)

• from Radiomuseum.org

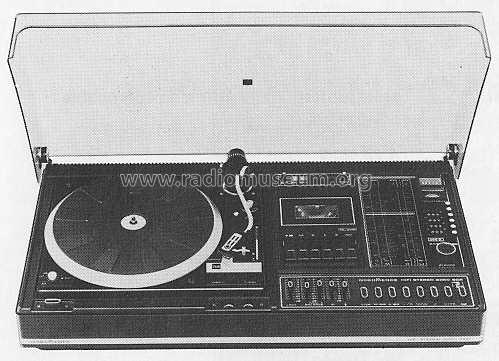

• Model: HiFi-Stereo-Kombination 8050 SCP NF-Einheit 7.160 E - Nordmende, Norddeutsche Mende-

• Dimensions (WHD)
• 673 x 177 x 355 mm / 26.5 x 7 x 14 inch

• Notes
• Plattenwechsler 1235 und Kassettenrecorder.

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)

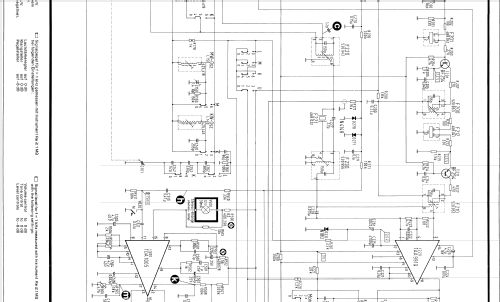

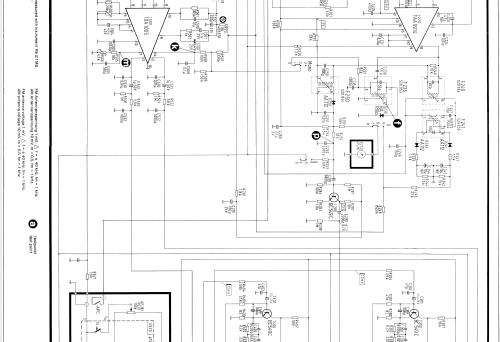

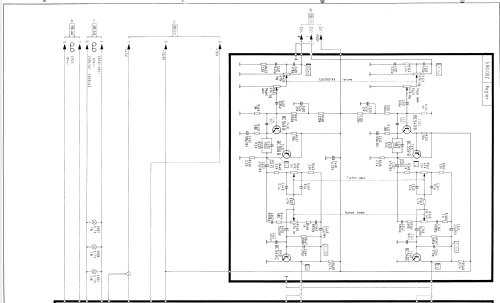

• -- Schematic

• Author
• Model page created by Walter Groer. See "Data change" for further contributors.
