• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146234

• Number of Tubes
• 3

• Valves / Tubes
• ECH81 EBF89 ECL82

• Main principle
• Superheterodyne (common); Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 170; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

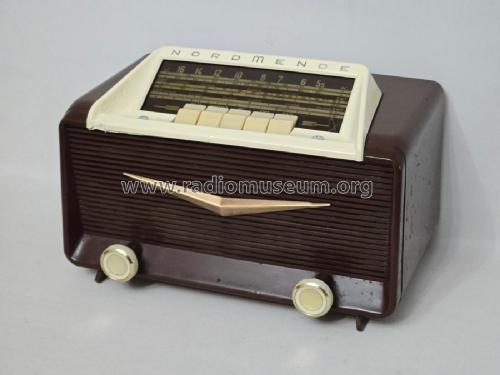

• Model: 8002 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 305 x 200 x 175 mm / 12 x 7.9 x 6.9 inch

• Notes
• Nordmende 8002 is an export model.
  SW1 2...6,5 MHz.
  SW2 6...19 MHz.

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Author
• Model page created by Adamantios Nikolaidis Wentzelopoulos. See "Data change" for further contributors.
