• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19691

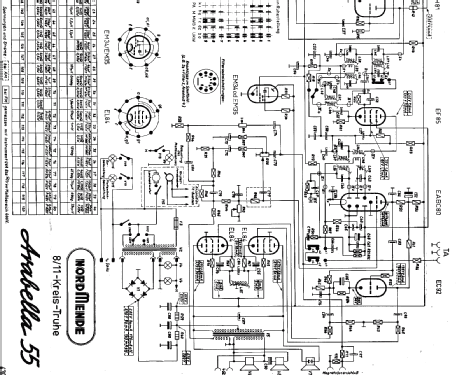

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EC92 EC92 ECH81 EF85 EM34 EABC80 EC92 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

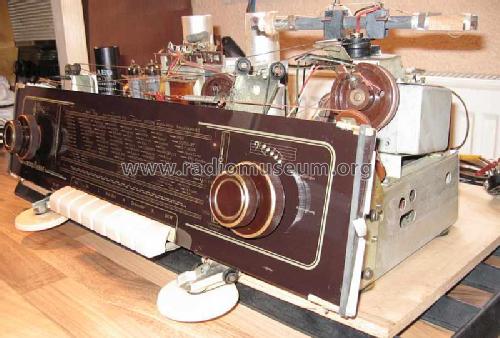

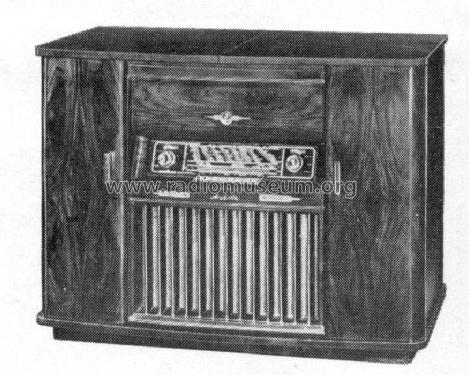

• Model: Arabella 55 Ch= Tannhäuser 55 - Nordmende, Norddeutsche Mende-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1070 x 790 x 430 mm / 42.1 x 31.1 x 16.9 inch

• Notes

• Rundfunk-Chassis = Tannhäuser 55.

  Plattenwechsler Dual 1002E.

• Net weight (2.2 lb = 1 kg)
• 49 kg / 107 lb 14.9 oz (107.93 lb)

• Price in first year of sale
• 995.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

• Literature/Schematics (1)
• -- Original-techn. papers.
