Arabella C Ch= 4/683C V828

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 288701

• Picture
• Schematics

Previous Next

Previous Next

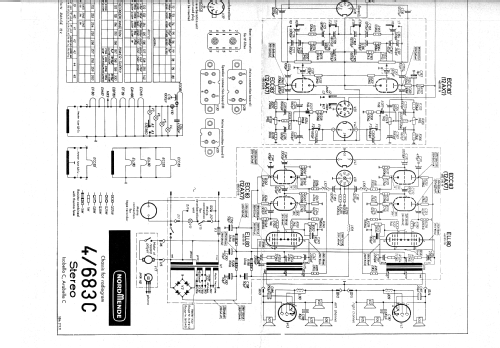

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM87 EAM86 EF80 ECC83 ECC83 ECC83 ELL80 ELL80

• Main principle
• Superheterodyne (common); Export model

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 110 Volt

• Loudspeaker
• 7 or more Loudspeakers

• Power out
• 17 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Arabella C Ch= 4/683C V828 - Nordmende, Norddeutsche Mende-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 55.5 x 31.5 x 15.7 inch / 1410 x 800 x 399 mm

• Notes

• Export (C) model of the Nordmende Arabella-Stereo Ch= 4/683.

  FM frequency range 88 - 108 MHz.

  A HF-Stereo-Decoder 184.218.12 can be retrofitted.

  BC (MW) dial with CD marks to indicate the frequencies 640 and 1240 kHz for Civil Defense transmissions. Refer to the forum article Conelrad: Radio meets the Civil Defense.
