• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24546

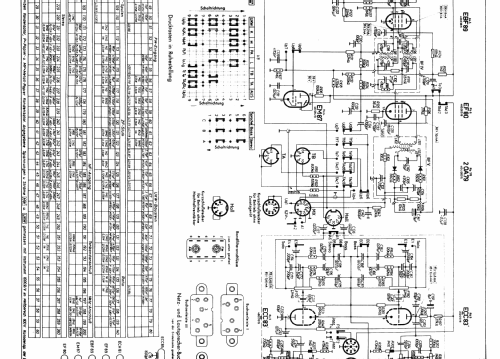

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM87 EF80 ECC83 ECC83 ECC83 ELL80 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

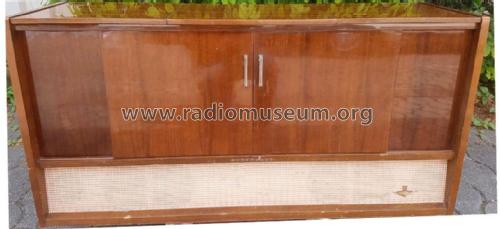

• Model: Arabella-Stereo Ch= 3/683 [poliert] - Nordmende, Norddeutsche Mende-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1310 x 840 x 410 mm / 51.6 x 33.1 x 16.1 inch

• Notes
• 3 Dioden BA110, 2xOA79 / mittelbraun hochglanzpoliert Rundfunk-Chassis hat Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8,5 W;
  Phono-Chassis = Dual 1008.

• Net weight (2.2 lb = 1 kg)
• 55.5 kg / 122 lb 3.9 oz (122.247 lb)

• Price in first year of sale
• 1,339.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• -- Original-techn. papers.
