Bornholm 969.128A Ch= 9.128A (Ch= 769.123C)
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1968/1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165813

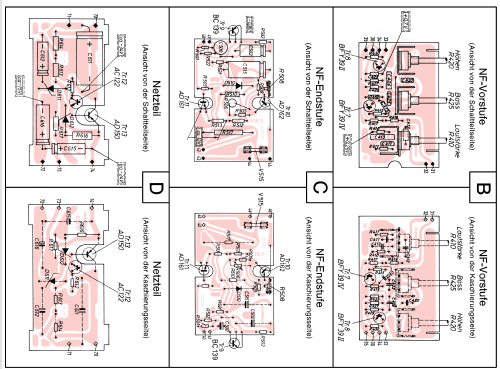

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Semiconductors

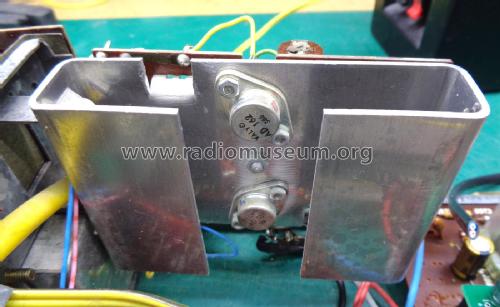

- AF106 AF106 AF121 AF121 AF125 AF137a BFY39IV BFY39II BC139 AD161 AD162 AC122 AD150 AA118 AA112 AA112 AA112 SiG0,5/50R ZD15 ZD24 Si-Br-Gl
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Bornholm 969.128A Ch= 9.128A - Nordmende, Norddeutsche Mende-

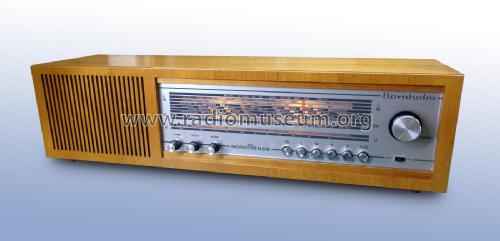

- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 597 x 168 x 161 mm / 23.5 x 6.6 x 6.3 inch
- Notes
- UKW: 87,5 - 104 MHz
KW: 5950 - 6240 kHz
MW: 515 - 1650 kHz
LW: 140 - 360 kHz
Ferritantenne für MW und LW; kontinuierliche Baß und Höhenregler.
Ausführung: Edelholz, mitteldunkel, oder Nußbaum natur mattiert, oder Teak.
Das Chassis 769.123C wurde auch im Modell spectra-phonic 4000 verwendet.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Source of data
- Handbuch VDRG 1968/1969
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
