• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1965–1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 112732

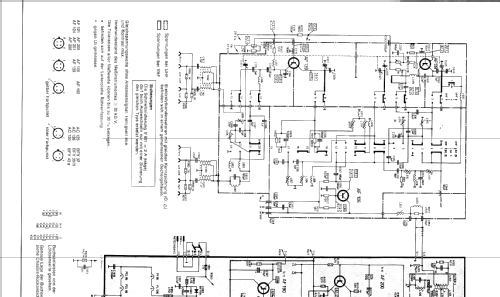

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• PCL86 PCL85 PC92 PL500 PY88 DY86 A59-11W or A59-12W

• Number of Transistors
• 14

• Semiconductors
• AF139 AF139 AF106 AF200 AF201 AF202 BFY37 BFY43 AF121 AF190 AC125 AF190 AF190 AC130

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Cabinet Ch= Uni 16 866.730.00 - Nordmende, Norddeutsche Mende-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 870 x 865 x 450 mm / 34.3 x 34.1 x 17.7 inch

• Notes
• VHF/UHF. Technische Daten wie Konsul (1966), jedoch Standgerät.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
