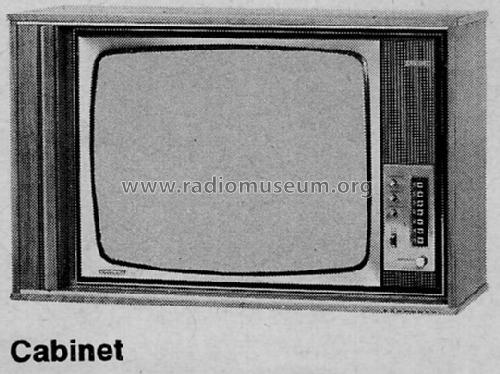

Cabinet 971.252.A Ch= Uni 19A

Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Data
Forum
Pictures
Collections

  • Year
  • 1969/1970
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 191086

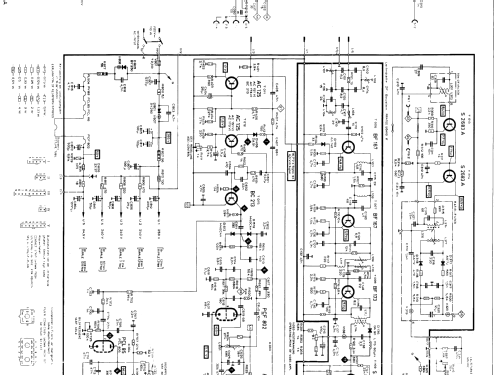

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • 15
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Cabinet 971.252.A Ch= Uni 19A - Nordmende, Norddeutsche Mende-
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 790 x 865 x 425 mm / 31.1 x 34.1 x 16.7 inch
  • Notes

  • Nordmende Cabinet Standgerät; 61 cm s/w TV mit CCIR FUF/UHF Tuner, 8 Drucktasten 7 VHF/UHF Progammtasten, Ein/Aus Taste, Anschluss für Fernbedienung (Lautstärke/Helligkeit vorbereitet. Fernbedienung 971.272.A

    Halbleiter: Nur 1x pro Typ gelistet.

    Chassis auch verwendet in Modell Nordmende
    Weltklasse 971.203.A, Imperator 971.206.A, Automatic 971.209.A

  • Net weight (2.2 lb = 1 kg)
  • 27 kg / 59 lb 7.5 oz (59.471 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Original Nordmende Service Unterlagen)
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
