• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1979/1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77388

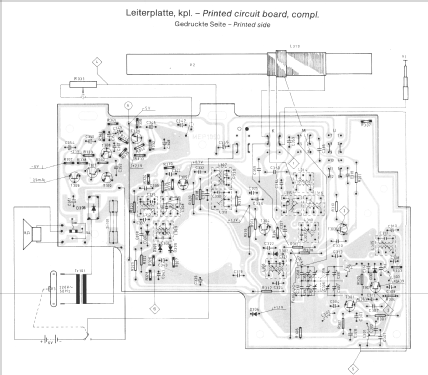

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• ED1502 ED1502 ED1502 ED1602 ED1502 1N34 1N60 1N60 ED1602 ED1602 ED1602 ED2501 ED2502

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cambridge 304 980.192h - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 146 x 62 mm / 8.9 x 5.7 x 2.4 inch

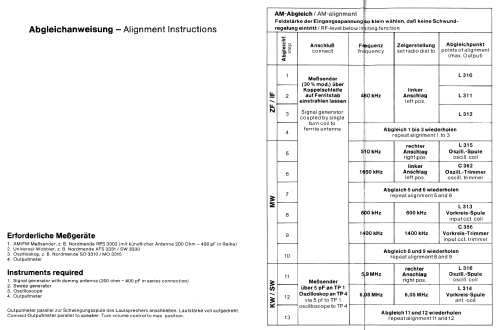

• Notes
• UKW: 87,5 - 108 MHz
  KW: 5950 - 6200 kHz
  MW: 515 - 1620 kHz


• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
