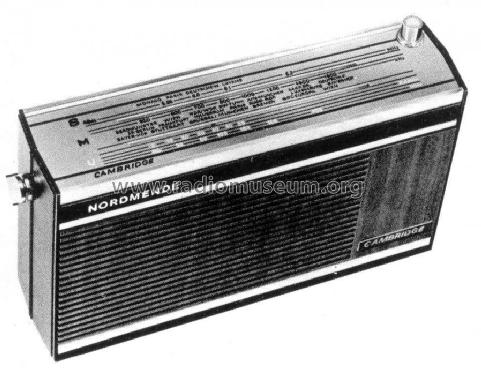

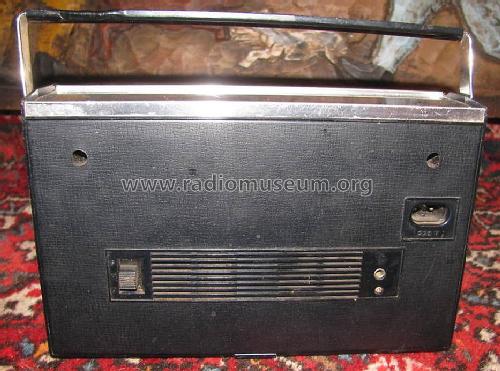

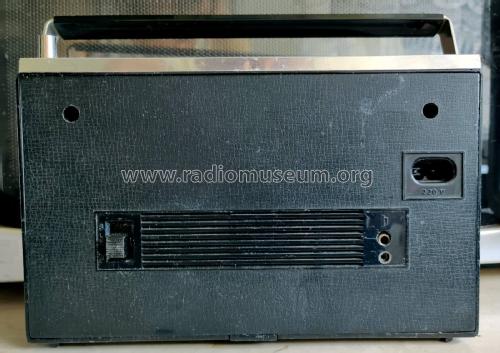

Cambridge 972.193A

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97831

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC930 2SC930 2SC930 2SC939 2SC930 2SC930 2SC537 2SC537 2SB22 2SB22

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

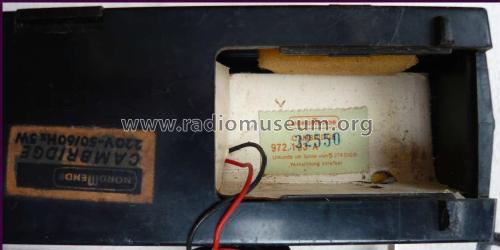

• Power type and voltage
• Line / Batteries (any type) / AC 220 / AA: 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.45 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cambridge 972.193A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 215 x 130 x 58 mm / 8.5 x 5.1 x 2.3 inch

• Notes

• 4 Dioden, 1 Gleichrichter, Anschlussbuchsen: Aussenlautsprecher, Kopfhörer.

  Gewichtsangabe laut techn. Dokumentation mit Batterien. Das Handbuch VDRG nennt 1 kg m.B.

• Net weight (2.2 lb = 1 kg)
• 1.050 kg / 2 lb 5 oz (2.313 lb)

• Source of data
• Handbuch VDRG 1971/1972

• Literature/Schematics (1)
• -- Original-techn. papers. (Nordmende Service-Manual)

• Author
• Model page created by Daniel Doll. See "Data change" for further contributors.
