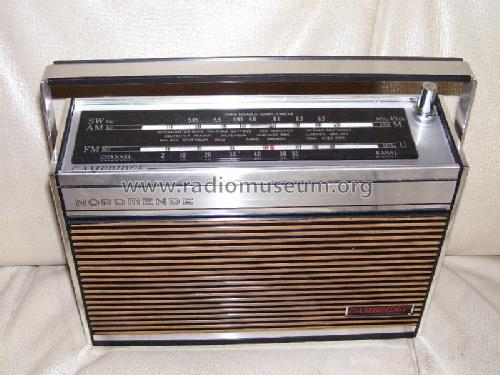

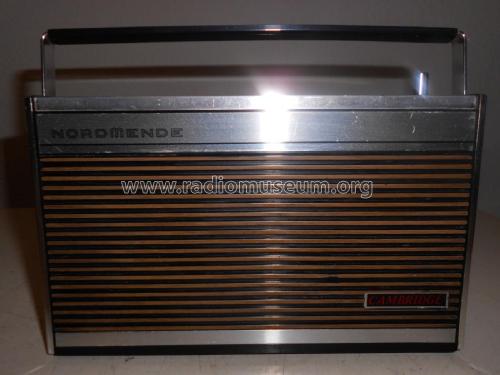

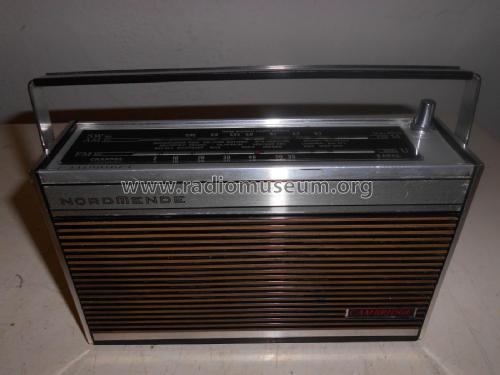

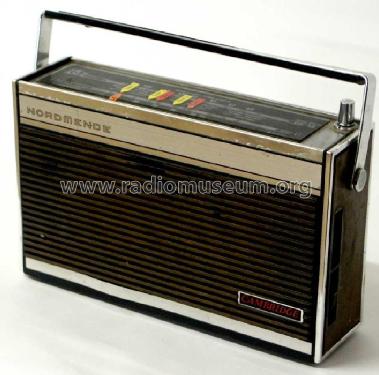

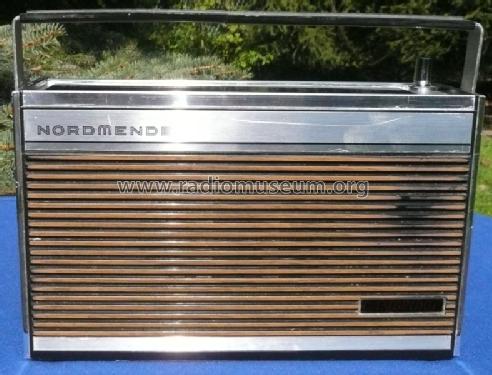

Cambridge 974.198.A

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1972–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28932

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC930 2SC930 2SC929 2SC930 2SC930 2SC930 2SC537 2SC537 2SB22 2SB22

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.45 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cambridge 974.198.A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 135 x 60 mm / 8.7 x 5.3 x 2.4 inch

• Notes
•   UKW: 87,5 - 108 MHz
  KW: 5850 - 6300 kHz
  MW: 515 - 1630 kHz


• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973

• Mentioned in
• Handbuch VDRG 1973/1974 (und 1974)

• Literature/Schematics (1)
• -- Original-techn. papers.
