• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26210

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC808 EMM803 ELL80 ECC81

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

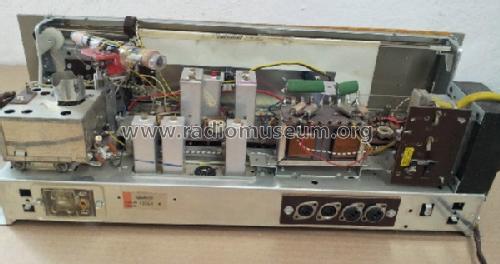

• Model: Caruso-Stereo Ch= 6/675 - Nordmende, Norddeutsche Mende-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1090 x 800 x 365 mm / 42.9 x 31.5 x 14.4 inch

• Notes
• Dioden: 2× OA79, 11× OA81.
  Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 3 W.
  Phono-Chassis = Philips AG3306.

• Net weight (2.2 lb = 1 kg)
• 41 kg / 90 lb 4.9 oz (90.308 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.
