• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28620

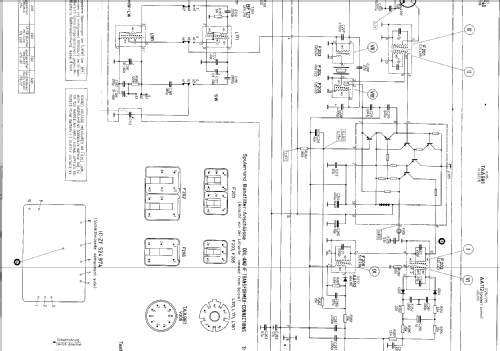

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF254 BF255 BF240 BF121 TAA981 BC173 BC192 AC117 AC175 AC117 AA112 AA112 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / 2×4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Charleston 2.107A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 180 x 75 mm / 11.4 x 7.1 x 3 inch

• Notes
• UKW: 87,5 - 108 MHz
  MW: 515 - 1650 kHz
  LW: 145 - 260 kHz
  KW: 5900 - 16000 kHz

  Automatische Umschaltung von Batterie- auf Netzbetrieb.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972
