• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163867

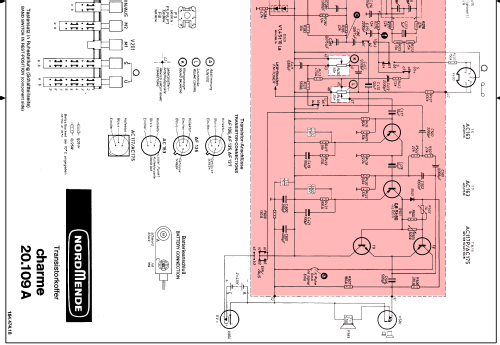

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF135 AA118 AF126 AF126 AF137 AA112 AA112 AA112 AC163 AC163 AC117 AC175

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Charme 970.109A Ch= 20.109A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 275 x 175 x 77 mm / 10.8 x 6.9 x 3 inch

• Notes
• UKW: 87,5 - 104 MHz
  MW1: 515 - 1370 kHz
  MW2: 1340 - 1625 kHz
  KW: 5950 - 6200 kHz

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

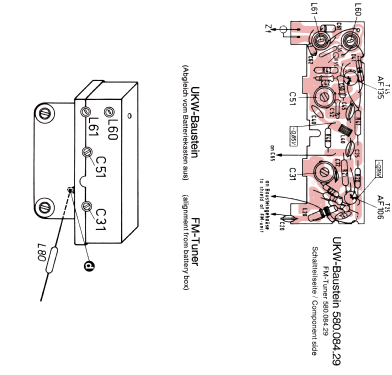

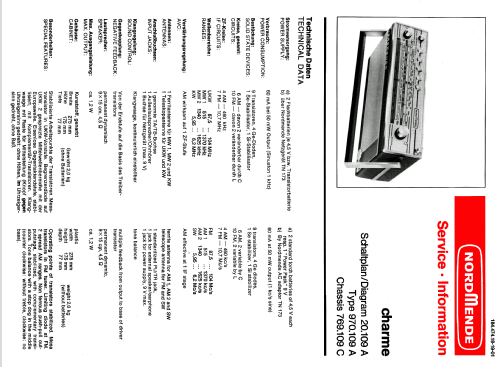

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Thomas Günzel † 1.8.22. See "Data change" for further contributors.
