• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1975 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 251059

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A31-120W

• Number of Transistors
• 24

• Semiconductors
• AF279 AF367 AF109 AF106 BC238 BC251 BC308 BC318 BD517 BD516 BD596 BF198 BF199 BF457 BU109 ESM28 ESM29 TAA611 TBA120 TBA950

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 220 / DC 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

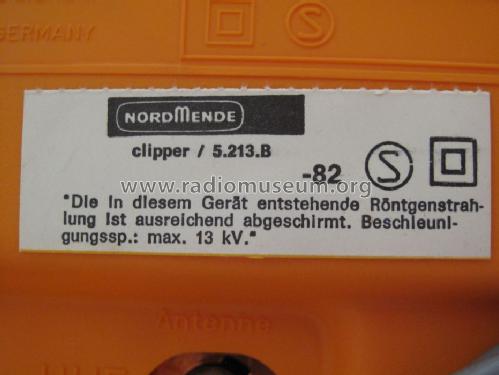

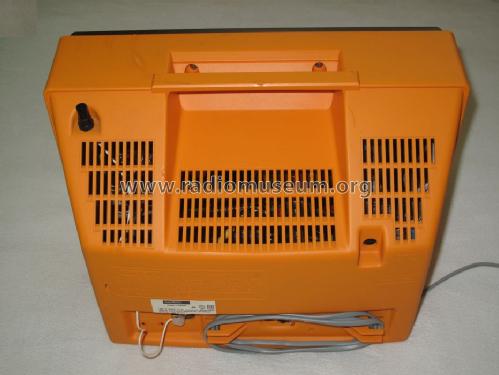

• Model: Clipper 5.213.B - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 385 x 250 x 240 mm / 15.2 x 9.8 x 9.4 inch

• Notes

• 31 cm s/w Portable, VHF/UHF-Tuner, Teleskop-Antenne, koaxialer Antennenanschluss.
  Halbleiter teilweise mehrfach vorhanden.

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Author
• Model page created by Andreas Echtner. See "Data change" for further contributors.
