- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1969/1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 353302
- Number of Transistors
- 9
- Semiconductors
- unknown_tr SD46
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1,5 / DC 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 0.3 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

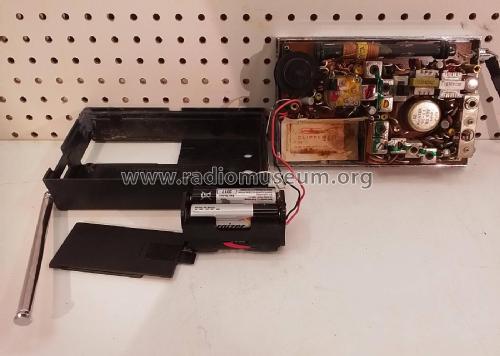

- Model: Clipper 9.100B - Nordmende, Norddeutsche Mende-
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 135 x 90 x 40 mm / 5.3 x 3.5 x 1.6 inch
- Notes
-
Kleingerät, Sandwichbauweise, Buchse 6 Volt für Fremdversorgung, Ohrhörer-Anschluß
- MW 510 - 1600 kHz, Ferritantenne
- UKW 88 - 108 MHz, ausziehbare Stabantenne 6 Abschnitte, 54 cm
Gewichtsangabe ohne Batterien.
- Net weight (2.2 lb = 1 kg)
- 0.365 kg / 0 lb 12.9 oz (0.804 lb)
- Mentioned in
- Handbuch RFP 1969/70 S.326 (Thiele)
- Author
- Model page created by Dieter Schulte-Kulkmann. See "Data change" for further contributors.
