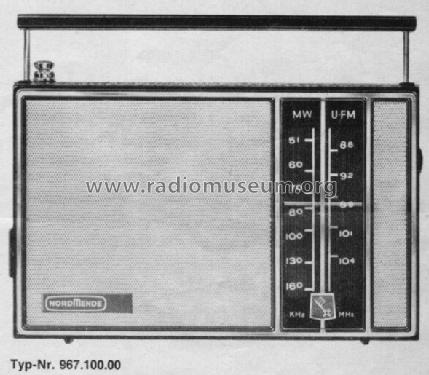

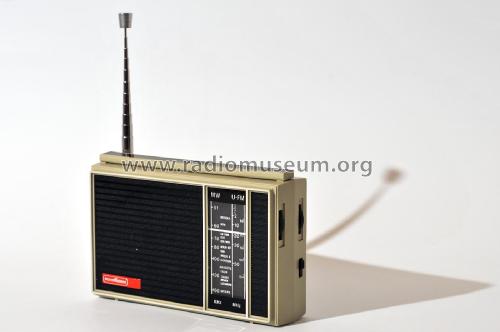

Clipper 967.100.00 Ch= 7/600

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7687

• Picture
• Schematics

Previous Next

Previous Next

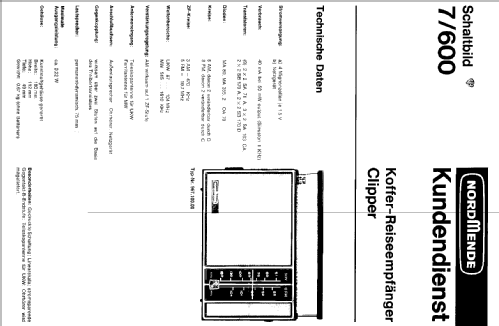

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA71 2SA71 2SA103 2SA103 2SA103 2SB170 2SB170 2SB170 or. 2SB172 2SB170 or. 2SB172

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / AA: 4 x 1.5 / DC 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.22 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Clipper 967.100.00 Ch= 7/600 - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 180 x 120 x 49 mm / 7.1 x 4.7 x 1.9 inch

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Source of data
• Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Handbuch VDRG 1967/1968

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Handbuch RFP 1967/68 S.321 (Thiele)

• Other Models

• Here you find 1755 models, 1644 with images and 1273 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
