Clipper E 011 Ch= 1/601K

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1961–1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7725

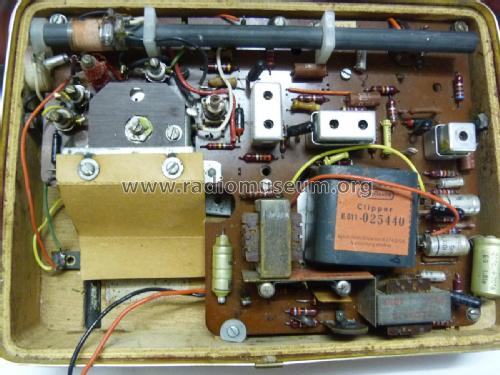

• Picture

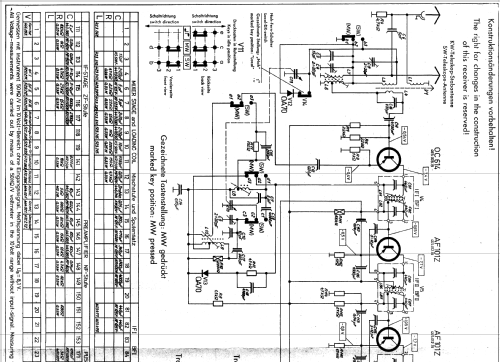

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC614 AF101 AF101 OC75 OC71 OC74 OC74 OA70 OA70 OA70

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Clipper E 011 Ch= 1/601K - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 165 x 70 mm / 9.1 x 6.5 x 2.8 inch

• Notes

• Lieferbare Gehäusefarben : Rubinrot, Golfblau, Ghanagrün , Sierrabeige.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Price in first year of sale
• 175.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1962/63 (HdB d.Rdf-& Ferns-GrH 1961/62)

• Literature/Schematics (1)

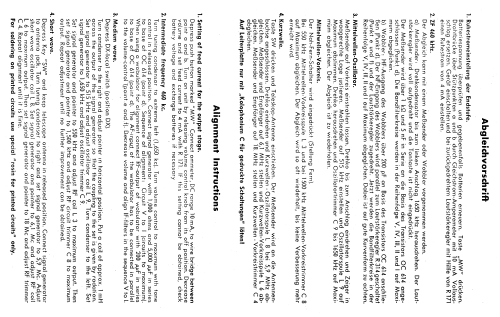

• -- Original-techn. papers.
