• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1978/1979

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 339960

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 510JFB22

• Number of Transistors
• 68

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Color Triabolo 8.522J 777.514B Ch= FVI/110 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 500 x 395 mm / 19.3 x 19.7 x 15.6 inch

• Notes

• Nordmende Color Triabolo, Farbfernseh-Empfänger mit 51 cm black stripes inline Farbbildröhre. Vorbereitet für Videotext und Einbau eines PAL-Secam Decoders.

  Gehäuseausführungen: weiss, schwarz, nussbaumfarbig/schwarz. Tragegriff abnehmbar.

  Ultrasonic Fernbedienung Telecontrol 160

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Mentioned in
• -- Original prospect or advert (Nordmende Programm-Illustrierte 1978/79 S.32)

• Literature/Schematics (1)

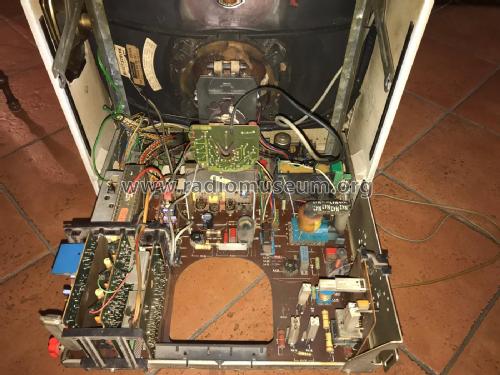

• -- Original-techn. papers. (Nordmende Vollmodul-Chassis FVI/110)

• Author
• Model page created by Paolo Tarantino. See "Data change" for further contributors.
