• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1984–1990

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 255945

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

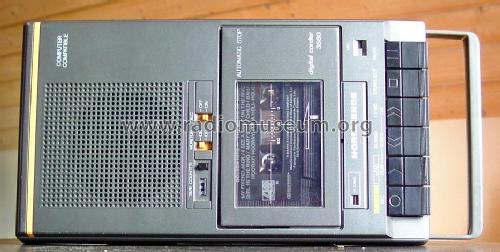

• Model: Digital Corder 3560 985.109H - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 140 x 260 x 50 mm / 5.5 x 10.2 x 2 inch

• Notes

• Modell von 1985, Verkaufsstart nach den Herbstmessen 1984, bis in die 1990er im Handel.

  Der Name Digitalcorder weisst auf die Verwendung als Datenrecorder hin.

Bedienungsanleitung Digital Corder 3560

1040 KB

• Documents regarding this model

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
