• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1967 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 204799

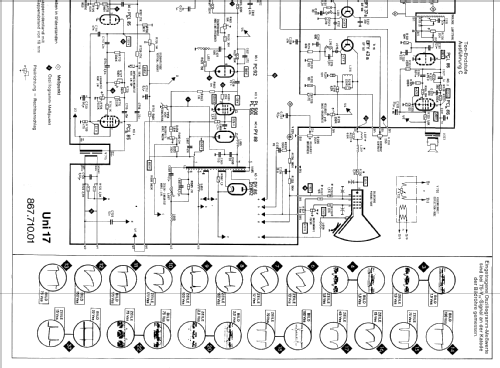

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• PCL86 PCL85 PC92 PL500 or PL504 PY88 DY80 or DY802

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org

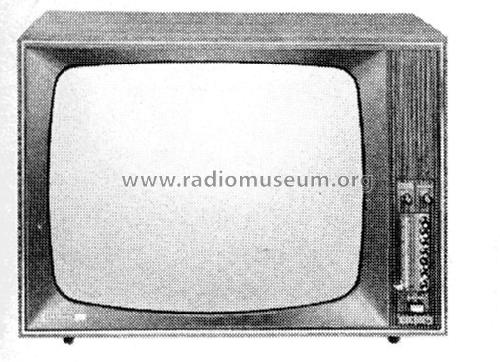

• Model: Diplomat-19 - 962.221.A Ch= Uni 19 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, with any shape - general.

• Notes
• Tischgerät s/w TV mit CCIR VHF/UHF Tuner, Anschluss für Fernbedienung (Helligkeit/Lautstärke) vorbereitet.

• Mentioned in

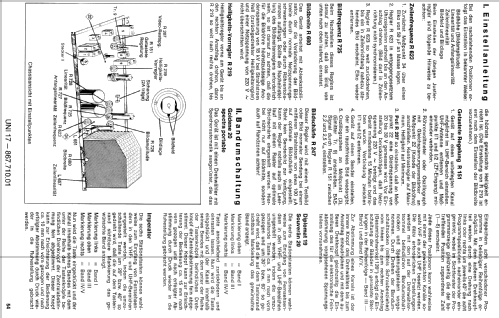

• Original Nordmende Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
