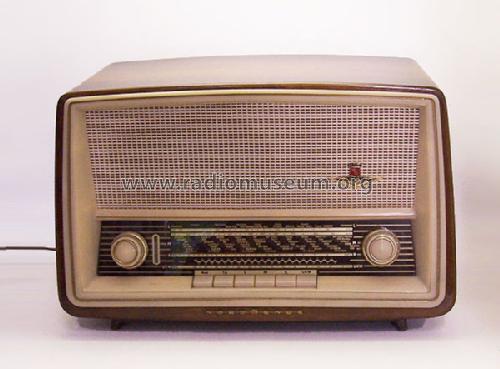

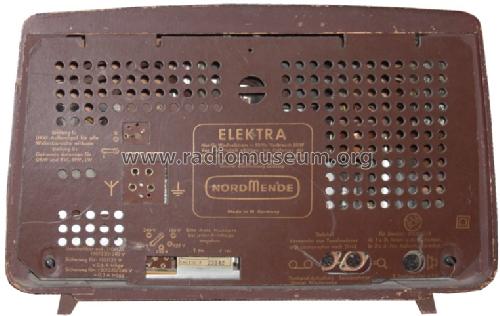

HiFi Elektra 62 Z13 Ch= 2/613

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106389

• Picture
• Schematics

Previous Next

Previous Next

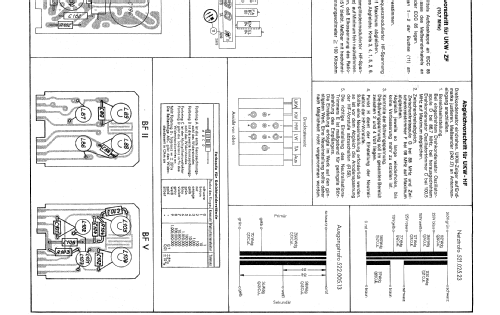

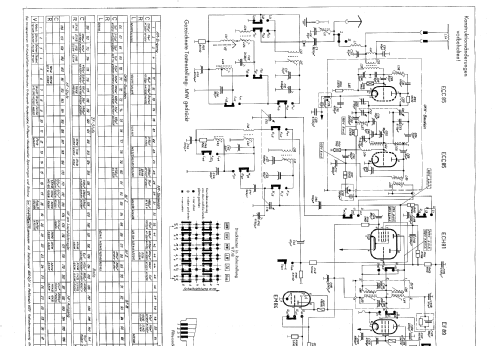

Click on the schematic thumbnail to request the schematic as a free document.

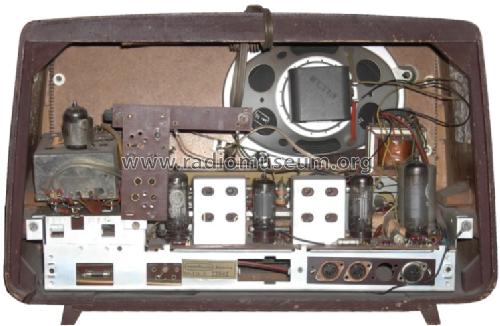

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Number of Transistors

• Semiconductors
• B250C75 or. 464.010.15

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: HiFi Elektra 62 Z13 Ch= 2/613 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 425 x 275 x 220 mm / 16.7 x 10.8 x 8.7 inch

• Notes

• Im Handbuch des Rundfunk- und Fernseh-Grosshandels nur als Elektra bezeichnet. Dort ist der Gleichrichter mit B250C75 angegeben. Die Service-Dokumentation nennt dagegen die Nordmende-interne Bezeichnung 464.010. (ohne 15).

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1961/62 (S.A109)

• Literature/Schematics (1)
• Handbuch RFP 1961/62 (S.147)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Tim Küpper. See "Data change" for further contributors.

• Other Models

• Here you find 1755 models, 1644 with images and 1273 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
