• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 173621

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM34 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

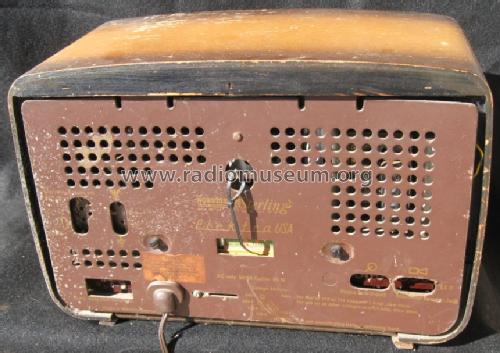

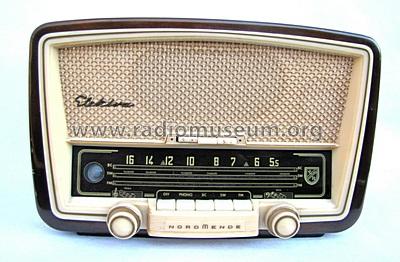

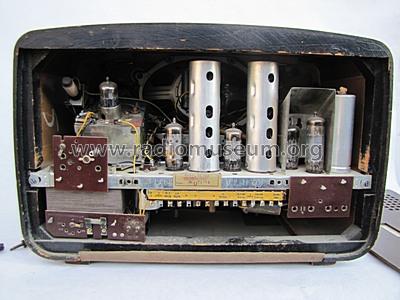

• Model: Sterling Elektra 58 USA - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 400 x 260 x 205 mm / 15.7 x 10.2 x 8.1 inch

• Notes
• Nordmende-Sterling Elektra 58 USA is similar to the domestic model Elektra 58. Features SW (6-19 MHz) instead of LW. FM 88-108 MHz. Sterling High-Fidelity, Inc., 22-14 40th Ave., Long Island City, NY, is the importer.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
