• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7658

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF135 AF126 AF126 AF137 AC163 AC163 AC117 AC175 AA118 AA112 AA112 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

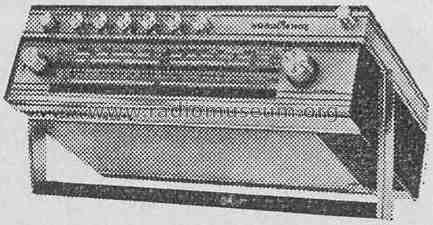

• Model: Euro 969.114A CH= 9.114A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 275 x 175 x 77 mm / 10.8 x 6.9 x 3 inch

• Notes
• UKW: 87 - 104 MHz
  MW1: 515 - 1370 kHz
  MW2: 1340 - 1625 kHz
  KW: 5950 - 6200 kHz
  LW: 145 - 260 kHz

  Netzbetrieb mit zusätzlich einsetzbarem Netzteil TN173 möglich.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Source of data
• Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
